IMSI System (TS-MSLOC)
Tactical Mobile Identification & Location System
The TS-MSLOC IMSI System is a complete tactical active solution designed to identify and locate mobile devices in any RF environment. The system supports multiple deployment modes, including portable backpack configurations and scalable vehicle-based rack systems. With support for 2G, 3G, 4G (FDD/TDD), and 5G NSA/SA technologies, the TS-MSLOC family offers industry-leading versatility, covertness, and operational performance.
TS-MSLOC-4CH – Portable Backpack Solution
- Covert tactical missions using commercial off-the-shelf backpack
- Supports 2G, 3G, 4G (FDD/TDD), 5G NSA & SA
- Fast multi-technology network scanning and advanced decoding
- Up to 4× independent SDR transmissions
- External high-power PA connectivity supported
- Battery runtime: up to 1.5 hours (hot-swap supported)
- Low noise figure with dynamic fan-speed regulation
- Military-grade multi-pin connector panel
- Built-in safety: battery smart management, temperature, current protection
- Optional remote management via 3G/4G/5G backhaul
System Size: 33 × 30.5 × 8 cm (H × W × D)

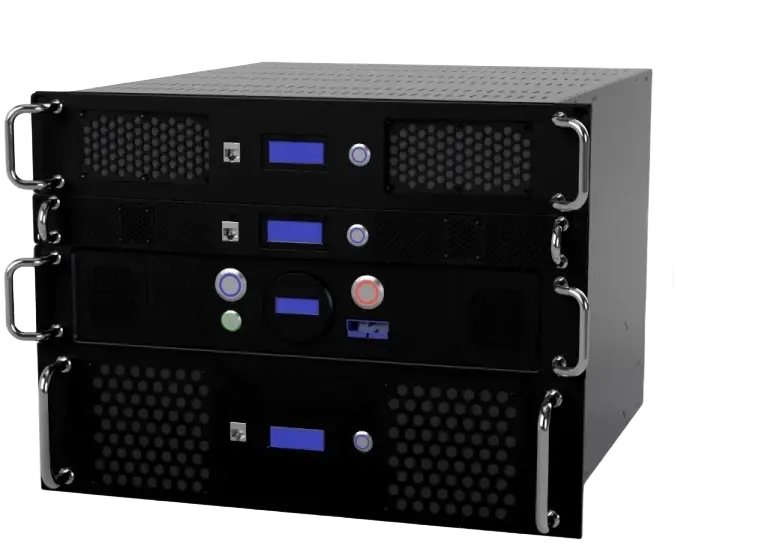

TS-MSLOC-8CH – Vehicle Rack System
- Designed for vehicle, fixed, or manned airborne deployments
- Supports up to 8× independent RF transmissions
- Scalable radio and RF modules based on operational requirements
- Supports 2G, 3G, 4G (FDD/TDD); optional 5G scanning
- Wi-Fi passive MAC collection (2.4 & 5 GHz)
- 8× high-efficiency internal PAs (60 W peak each)
- Advanced multi-channel network scanning and decoding
System Size: 35 cm (8U) × 43 cm × 48 cm (H × W × D)
Rack Weight: < 60 kg System Weight: < 50 kg
